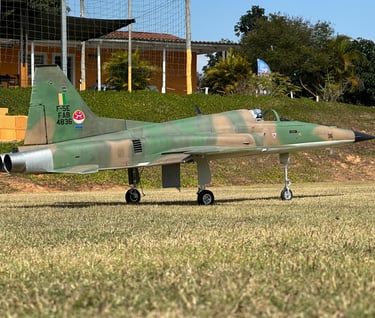

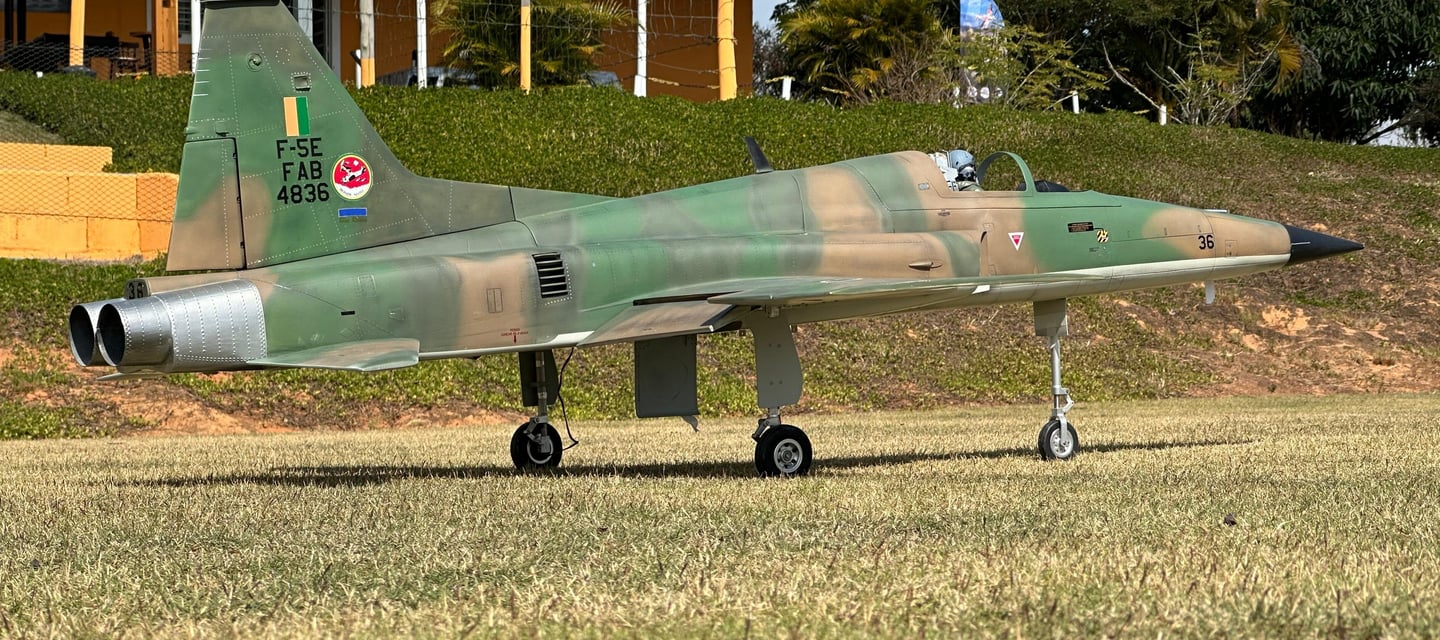

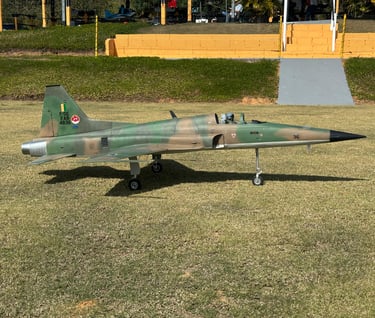

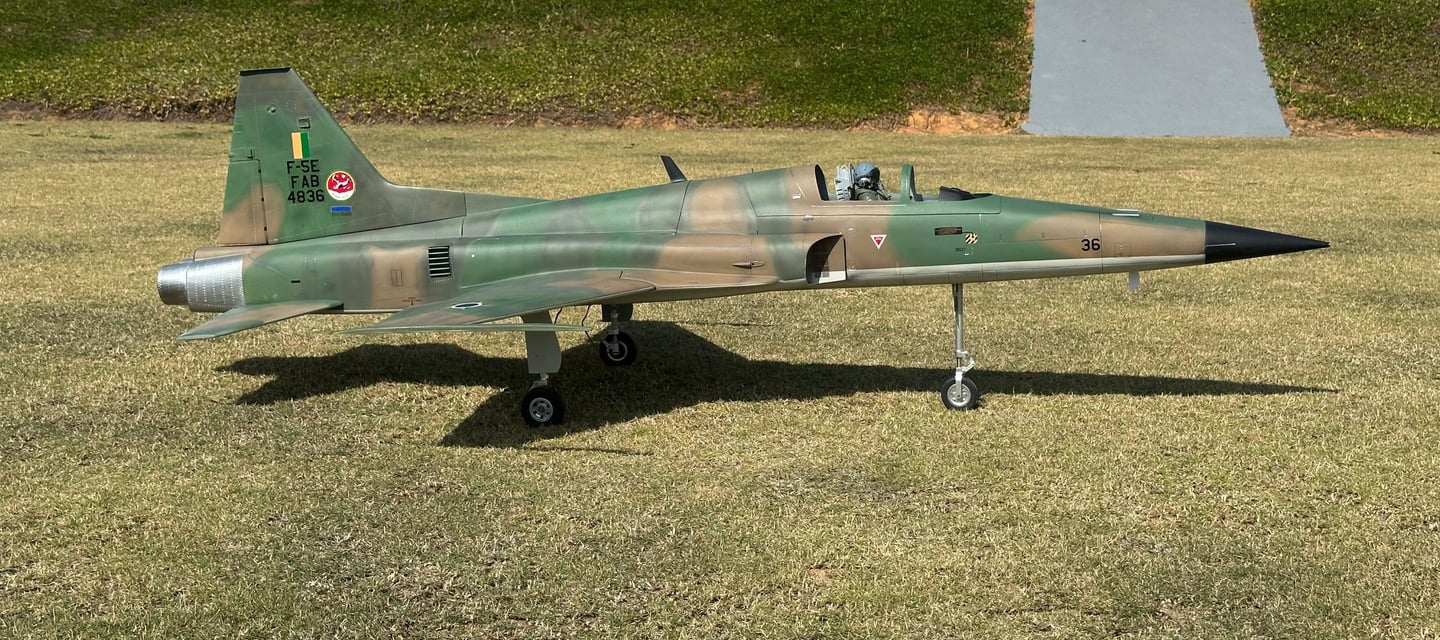

F-5 TIGER II

Especifications:

Wingspan: 90.55 in (2300mm)

Lenght: 80.71 in (2050mm)

Weight (no acessories): 10.15 lb (4.400g) FULL COMPOSITE

Flying Weight: 22 to 26 lb (10Kg to 11,5Kg)

Engines: Gasoline burning (20cc + 20cc)

Electric Motors (DUALSKY XM5060EA 490kV or similar230kV 5000W 33,3V to 55,5V LiPo)

Radio: Mínimum 7 channels with limited features

We reccommend 9 or more channels

Servos: All servos must be metal geared

Rudder and steering: 1 servo 15Kg or more torque

Ailerons: 2 servos Flaps: 2 servos Elevator: 2 servos 10Kg or more torque

Throtle: 1 servo (not used qith electric motor) 5Kg or more torque

Choke:1 servo (optional) Retracts:1 servo (pneumatic/spring air) or servoless (electric)

Spinner:3 1/2"(88,9mm) Wheels:3 3/4" to 4"(95,25mm-101,6mm) mains and 3 1/4"(82,55mm) front
