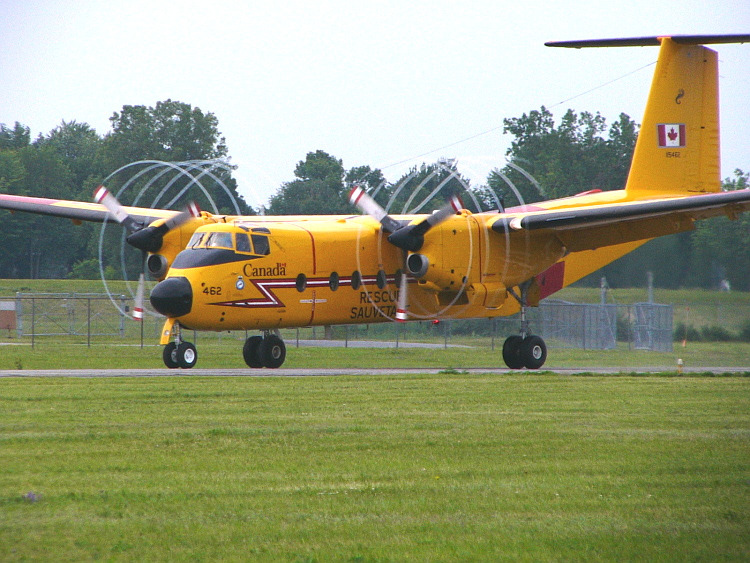

DHC-5 BUFALO

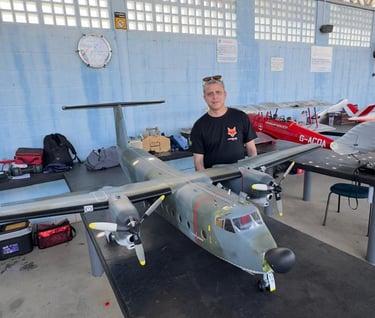

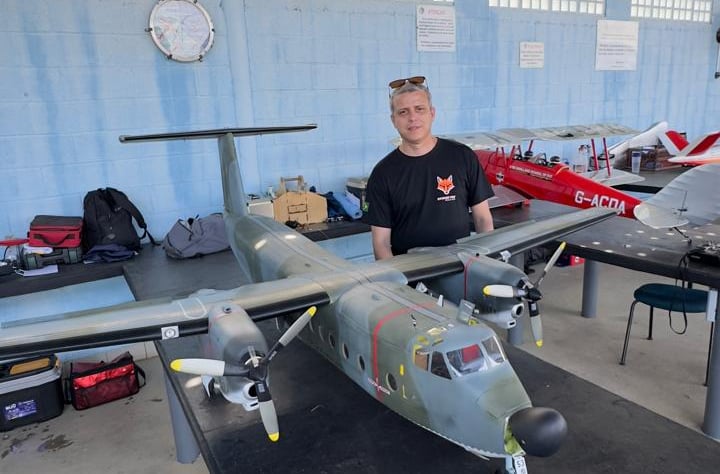

1. S/N 001 - SAVAGEFOX

2. S/N 002 - Pietro

3. S/N 003 - Leandro Rodrigues

4. S/N 004 - Especifications:

Length: 129.5" (3290mm).

Wingspan: 132'' (3360mm).

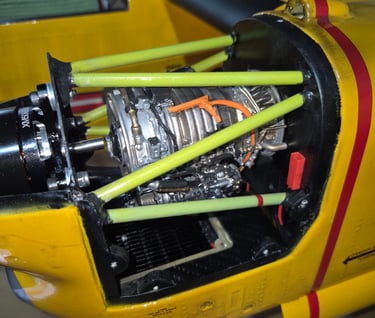

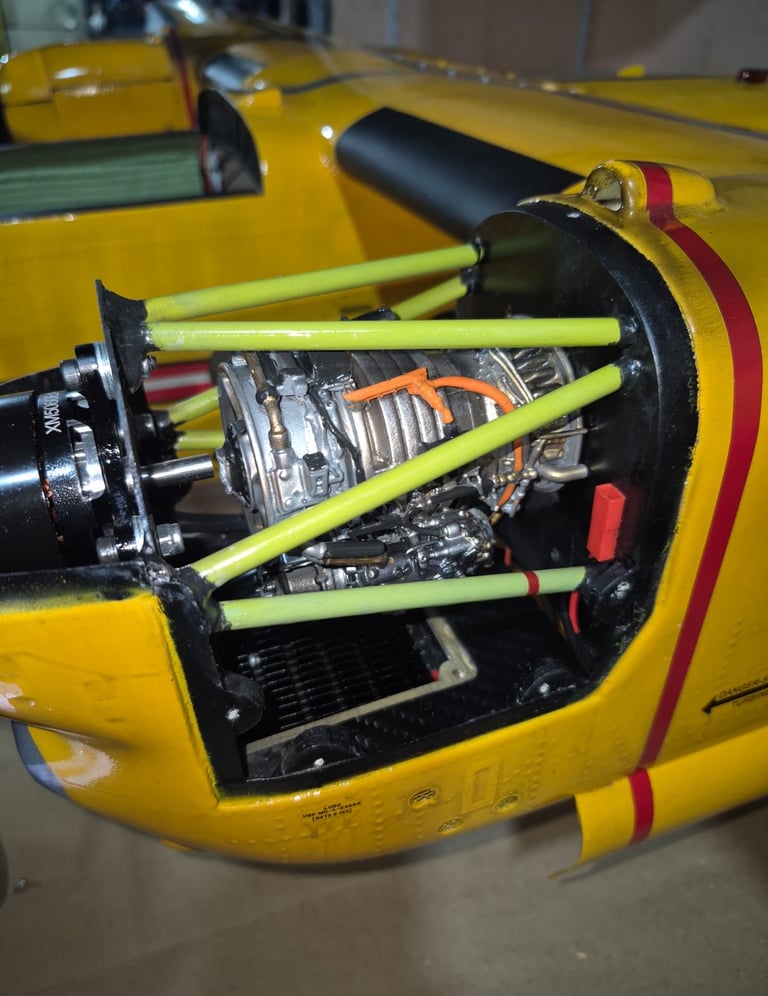

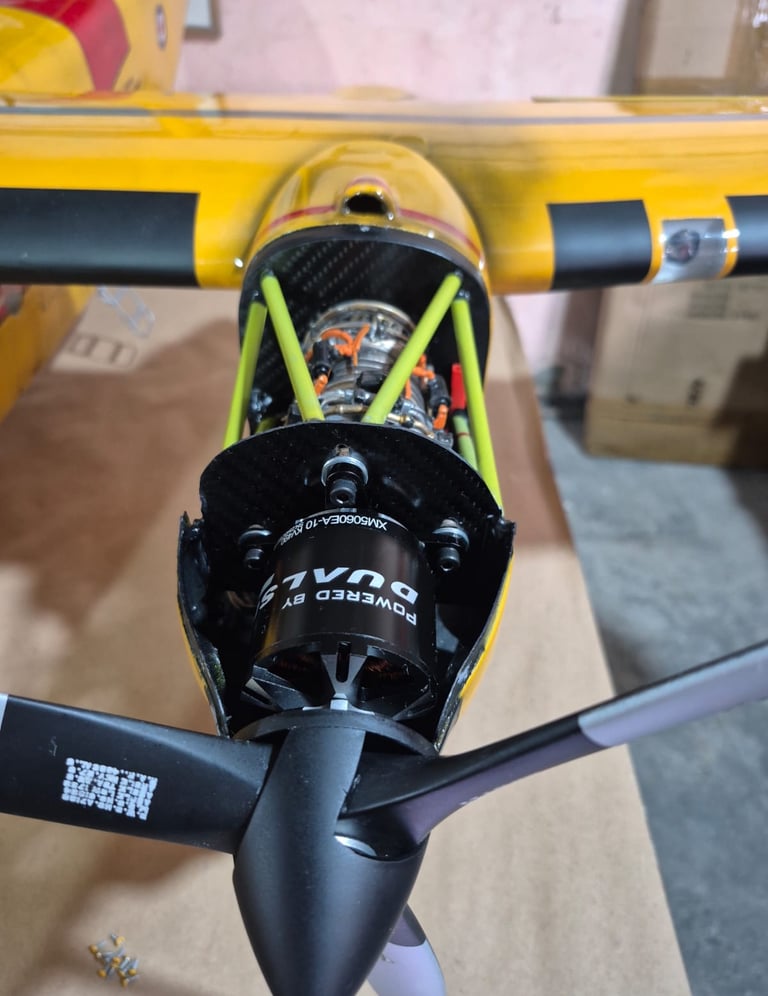

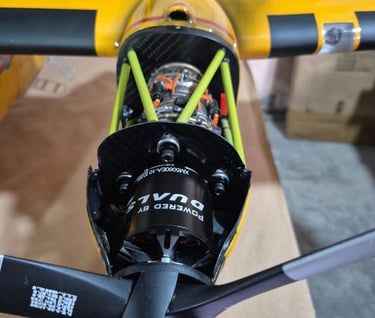

Power: DLE20 / DUALSKY XM5060EA 490kV

Dry Weight: 25kg (49-52 lbs)

Radio: Mínimum 7 channels with limited features. We reccommend 9 or more channels

Servos: All servos must be metal geared. 8 Servos required

Servos: All servos must be metal geared

Rudder and steering: 1 servo 15Kg or more torque

Ailerons: 2 servos Flaps: 2 servos Elevator: 2 servos 10Kg or more torque

Throtle: 1 servo (not used qith electric motor) 5Kg or more torque

Choke:1 servo (optional) Retracts:1 servo (pneumatic/spring air) or servoless (electric)

Spinner:3 1/2"(88,9mm) Wheels:3 3/4" to 4"(95,25mm-101,6mm) mains and 3 1/4"(82,55mm) front
